A few
years ago I survived my encounter with the ICM Tupolev TB-3 kit that I converted
to a civil version (known generically as G-2):
http://www.arcair.com/Gal5/4501-4600/gal4561_TupolevTB-3_Stern/00.shtm
Since
then three things happened:
1) I became more proficient making my own decals.
2) I gathered a bit more references on the type
3) The TB-3 model –a huge model with some serious mass- suffered a panne and
was smashed.
Considering all of the above I decided to “update” the model, although I
usually don’t particularly like to dwell on the past, and pretty much leave
the models alone once built.
Click on
images below to see larger images
The tasks at
hand were:
1) To remove the old –and therefore absolutely fused on the surface-
decals.
2) To design and print new (correct font) ones adding some lettering
missed before.
3) To build new skis according to better references (wider and
wood-colored)
4) To partially re-rig the model’s wires in a darker-colored filament (I
had used silver-colored ones which couldn’t be told apart from the model
background).
5) To remove the cover of the cockpit area and make a new one, a bit more
accurate -shallower among a few other things-.
As you
well know removing old decals can be challenging, more so if the surface
of the model is finely corrugated. In the process –and although I
don’t consider myself clumsier than a Malabama Swamp Monster- I managed
to knock off the four engines, the tail ski (yes, ski, not skid), the
ailerons, the rudder and a few other miscellaneous bits.

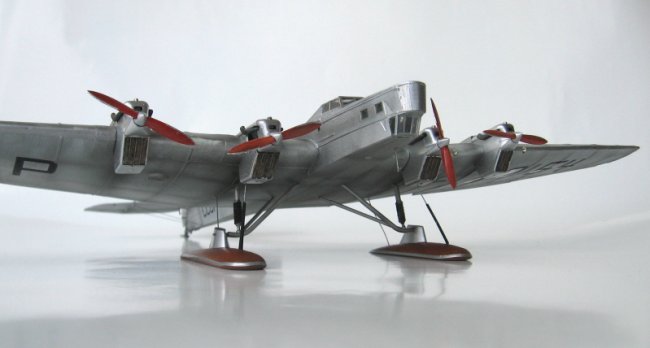

The
new skis were carved from basswood, painted and varnished, and then a
“metal” strip was added to emulate the original. A pedestal for the
axles was then glued.

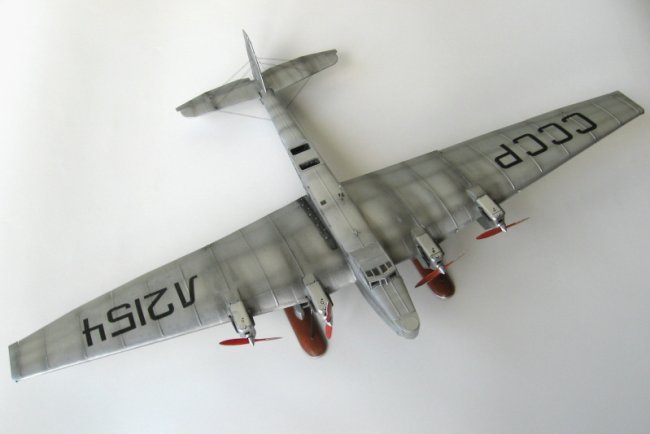

The
new decals were applied, a task always a bit tricky on a corrugated
surface. After I took all the photos I realized that I didn’t apply the
AEROFLOT decals (in Cyrillic naturally). Those were added after the photo
session (no way I was going to handle the beast again for another
session).
Then
all the detached parts and small parts that were knocked-off during
repairs had to be put back in place, carefully since the massive model
requires attentive manipulation.
Under
proper Aeroflot management, and now a bit more accurate thanks to the
“accident”, this dinosaur from another era is ready again for some serious
load transport on the white expanses of Mother Russia.
Gabriel Stern
