1/48 Trumpeter MiG-15-bis

by Li Weiguang

--------------------

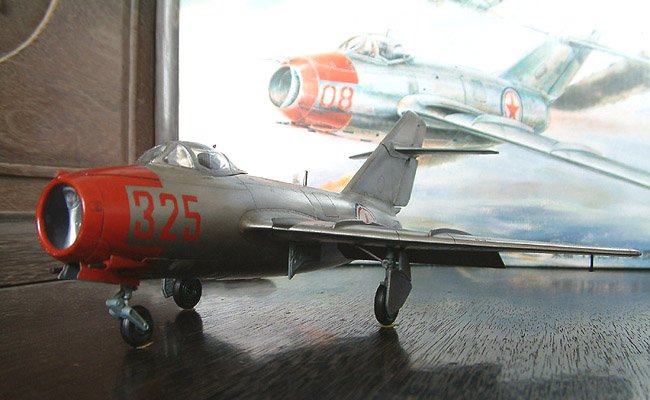

The  '325' MiG-15bis is the plane of Yevgeny Georgievic Pepelyayev---- top Russian ace of the Korean War 1950-1953.  I painted the nose all red at first, then used AutoCAD, bubble jet printer, the yellow underlay paper of the decal sheet, Tamiya tape and a knife to create 2 masks of this number, stuck them on the nose and painted Gunze 159 super silver all over the model finally.

Click on images below to see larger images

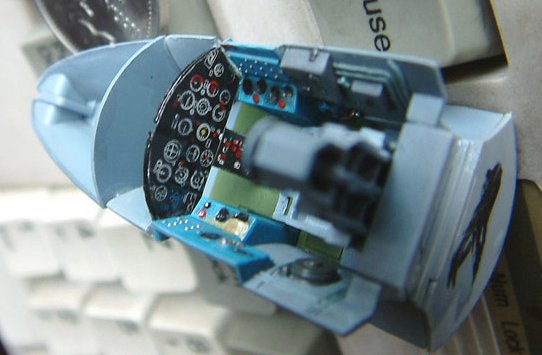

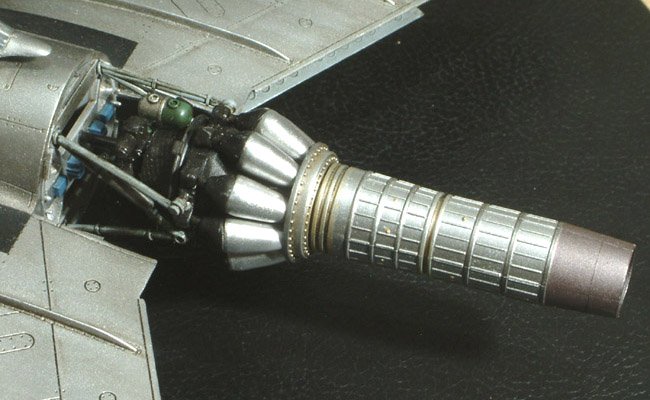

The kit fits pretty good.  But I strongly recommend anyone who build the plane to enlarge the aft fuselage inner space and test fit the engine BEFORE gluing the 2 parts of the aft fuselage together. It's a good place to settle some lead fuse under the nose avionics bay and in front of the instrument panel to avoid the plane from becoming a tail sitter.

The decal is tough, but used both Mr.Hobby blue cap and green cap softer, and some patience, it will look very nice when its done.

Click on images below to see larger images

The head rest on the ejection seat is wrong.  I acquired a spare one from a friend from his Tamiya kit .  Anyway, Trumpeter has a much better vertical tail and gun bay, avionics bay......

Weiguang

Click on images below to see larger images

Photos and text © by Li Weiguang
